How it works

The diagnostic runs on the device, through the exact playback element the app uses, because that element — not a spec sheet — is what governs whether a stream direct-plays. It plays every clip in the matrix, records what decoded, and turns the results into that device's profile.

When it runs

The diagnostic runs automatically on first sign-in, and again whenever the device is pointed at a new server. The guide screen checks a flag and, if unset, sends the device to the diagnostic route (apps/tv-web/src/features/guide/guide-screen.tsx, apps/tv-native/app/guide.tsx).

The measured profile lives in the server's database, keyed by a stable client-generated deviceId (TvDevice / DeviceCapability). So the "already ran" flag is keyed by server URL, not a plain boolean (CAPS_DONE_KEY in apps/tv-web/src/lib/device.ts): markCapsDone() stores the current SERVER_URL, and capsDoneForCurrentServer() only returns true when that stored URL matches the server the device is currently pointed at. Point the TV at a new Airwave server and the flag no longer matches, so the guide re-runs the diagnostic and the new server gets this device's profile too. markCapsDone() is also called on error or skip, so a broken run doesn't nag on every login. You can re-run it any time from Settings → Device → Run capability diagnostic.

The manifest

The apps don't hardcode the clip list — they fetch it. getCapabilityManifest() (packages/api/src/services/capabilities/service.ts) builds the manifest from the same CAP_MATRIX: each row plus its url: /caps/media/<id>.<container>. The clips are served as public, unauthenticated static files (apps/server/src/index.ts) because the TV plays them through a bare <video src> (or mpv source), which can't attach a bearer token. A small middleware overrides serveStatic's octet-stream with the real per-extension video MIME (video/x-matroska, video/mp2t, …) because some TV players refuse octet-stream on the native element. The whole diagnostic is thus self-contained in the backend: the app fetches the manifest, then plays each url.

The run loop (web)

apps/tv-web/src/features/diagnostic/diagnostic.tsx fetches the manifest, then walks it clip by clip through one native <video> element. For each clip (runOne):

1. Set v.muted = true (so autoplay is never blocked — the audioTracks list still populates while muted), point v.src at ${SERVER_URL}${test.url}, and play().
2. On the first decoded frame (loadeddata), let it run ~2.5s (to let dropped-frame stutter and the audio-track list settle), then snapshot.
3. A 10-second hard timeout catches clips that never produce a frame; an error event catches decode failures.

The snapshot records two independent signals:

• Video decode — decoded = !err && v.videoWidth > 0 && v.videoHeight > 0. A real decoded frame has real dimensions; a codec the panel can't decode leaves 0×0 (or fires error with v.error.code). It also captures getVideoPlaybackQuality() dropped/total frame counts.
• Audio decode — measured separately. A video-only check would over-credit audio: the clip's H.264 video plays fine while the DTS/TrueHD/ALAC audio silently produces nothing, and a naive check would mark the whole clip "decoded" and wrongly credit that audio. So audio is read from HTMLVideoElement.audioTracks: the panel lists a decodable audio track for codecs it can decode and drops/disables it for ones it can't. (webkitAudioDecodedByteCount is stubbed to 0 on the C2's Chrome 108 and useless, so audioTracks is the signal that works; the raw readout is kept in audioDebug for confirmation.)

The derived audio verdict

audioOk is not decided inline per clip — it needs a cross-clip control, so it's derived in a second pass after the whole matrix runs:

• If a clip listed a usable, enabled audio track → audioOk = true.
• Else, if any clip in the run ever got a track (proving the audioTracks API works on this panel) and this clip's video decoded but exposed no usable track → audioOk = false.
• Otherwise → left undefined (unknown). If the API is absent, or no clip ever produced a track, or the video never decoded, we refuse to guess — so a working codec is never wrongly marked unsupported.

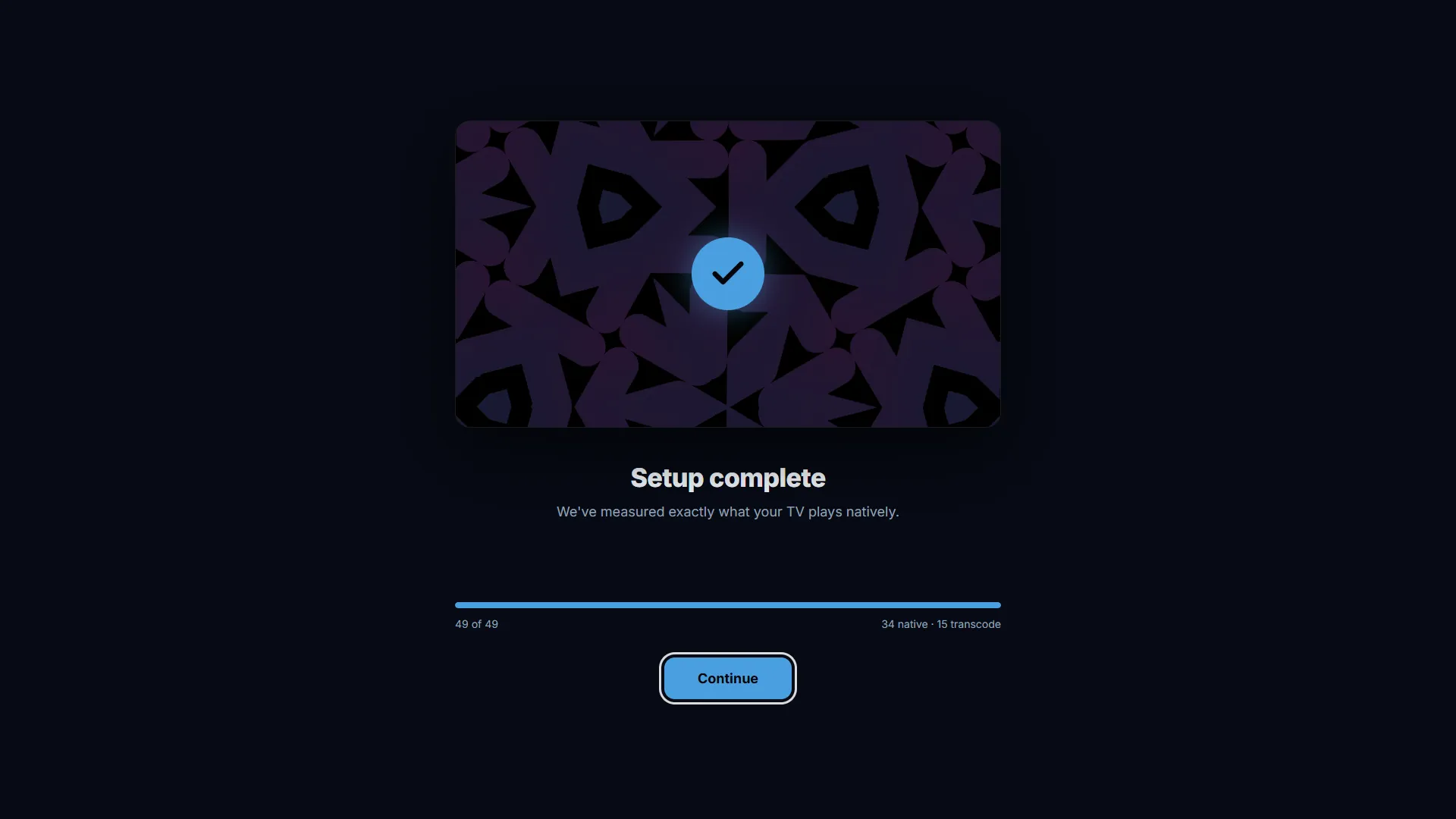

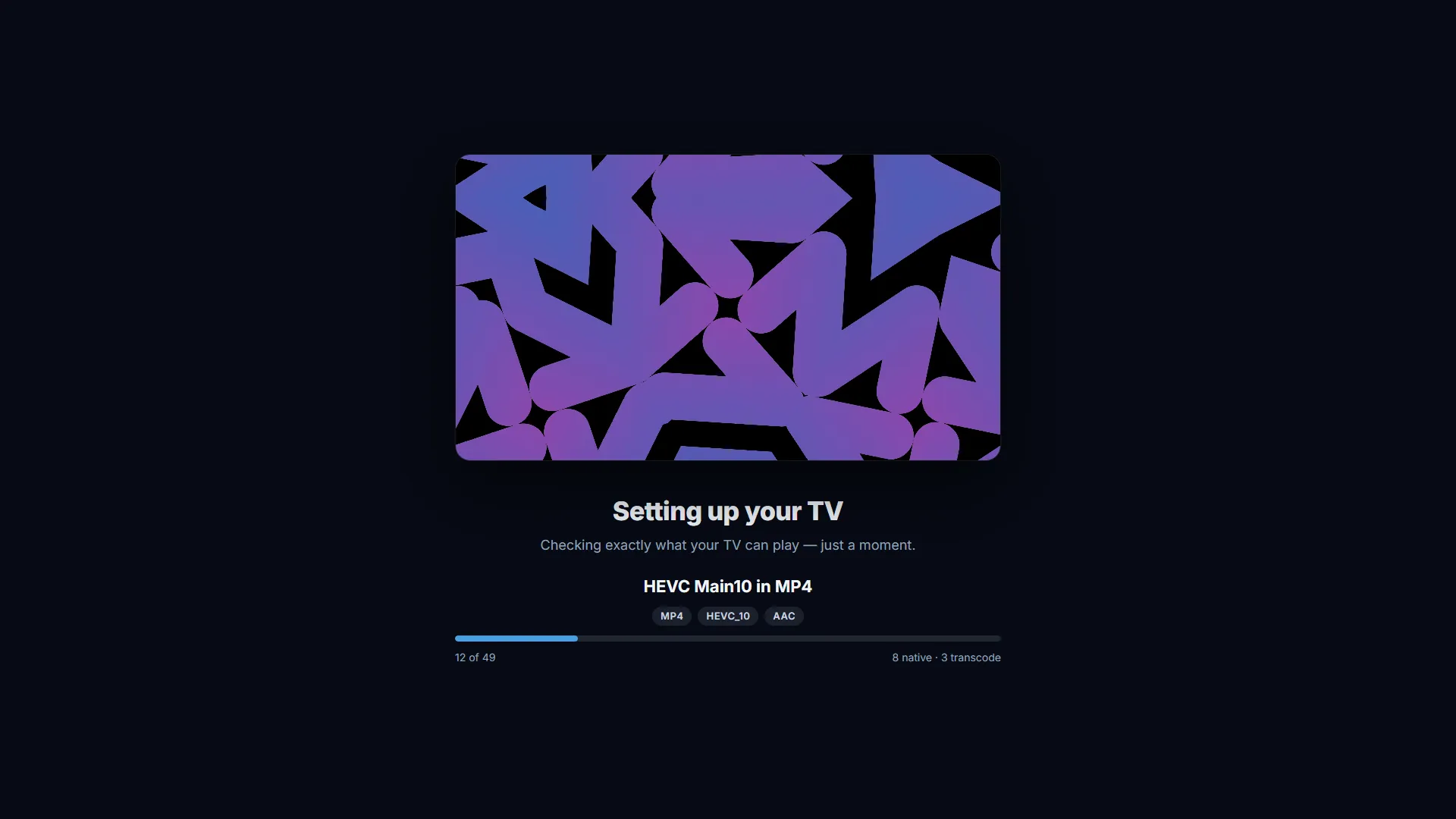

Each result is upserted to the server as it's measured (api.capsResult → saveCapabilityResult), then re-sent with the derived audioOk. On screen the user sees a live progress bar and a running N native · M transcode tally — there's no human judgment (manual subtitle/HDR verdicts exist in the schema but the auto-run doesn't prompt for them).

The native (mpv) variant

apps/tv-native/src/features/diagnostic/diagnostic.tsx does the same measurement on the RN/mpv client, with platform-specific mechanics:

• Decode signal comes from mpv's onLoad MediaInfo (width/height > 0 = a real parsed frame) and onError. mpv decodes essentially all audio it can open, so a decoded clip implies audio; the same cross-clip audioOk derivation runs, but in practice it confirms broad support rather than culling.
• The player is mounted fresh per clip (source = null between clips, with a short settle window) — cycling ~49 mixed-4K clips through one reused mpv instance stacks VideoToolbox decoder sessions and surfaces until it OOMs.
• AV1 is skipped, not played, on Apple (CRASHY_VIDEO_ON_APPLE = new Set(["av1"]), gated on Platform.OS === "ios"): mpv software-decodes AV1 via dav1d, which null-crashes the whole app on iPad/Apple TV. It's recorded unsupported — which is honest, because the server-side quirk force-transcodes AV1 on those platforms anyway (see Device overrides).

The resulting map

Every clip's outcome is one DeviceCapability row (packages/db/prisma/schema/device-capability.prisma), upserted by (deviceId, testId) so a re-run overwrites in place. Auto-detected fields (decoded, decodedWidth/decodedHeight, droppedFrames/totalFrames, error) come from the video element; audioOk holds the derived verdict. Together these rows are the device's real capability map — the raw input to the effective profile that drives playback.

Two capability sets, not one

The native <video> element (raw-file direct-play, using the panel's hardware decoder) and hls.js/MSE (the transcode-delivery path) can decode different things. The diagnostic measures the native decoder — that is the set that governs whether Airwave can avoid transcoding at all. The delivery ladder then falls back to MSE only when a native attempt fails, and the transcode target it advertises is deliberately narrow (only MSE-safe audio like AAC/MP3 survives a SourceBuffer append).
